Chemical and Hazardous Material Storage Buildings
If your business stores, accumulates, or dispenses hazardous chemicals, you must make sure you properly control them. Environmental compliance is easy with these safe, code-compliant modular hazmat buildings - VersaBilt Chemical Storage Buildings. Let the leader in modular safe space help you protect the environment while you prevent high liability accidents. Available in a wide range of sizes to suit the needs of your worksite.
Features
- Containment sump
- 60-inch double doors
- Ventilation
- Corrosion-resistant paint
- Explosion-proof interior electrical.
A Wide Range of Sizes
With the numerous sizing options available, there are hundreds of sizing possibilities. Available in various depths and lengths up to 42 feet.
Thermal Resistance
Depending on the location and application of your chemical storage building, RedGuard offers three levels of fire protection and endless accessories, like explosion-proof electrical accessories, ramps, and shelving.
All models are available with damage-limiting construction if required.
Non-Combustible Steel – Rugged steel non-combustible construction for storage applications separated from other occupied structures.
2-Hour Fire Rating – to ensure internal fires are contained.
4-hour Fire Rating – for the most critical applications.
YOUR PARTNER IN SAFETY
Hazardous materials are commonplace, even if few people want to think about chemicals and their role in our everyday lives. Those whose job it is to handle, mix, and store these materials understand their importance and the role they play in helping make our lives, in many ways and in many places, easier. At RedGuard, we have designed modular solutions centered on safety since 1998. Blast-resistant buildings to protect people and equipment have been our focus since 2005. VersaBilt Chemical storage buildings are resilient structures that make environmental compliance safe and easy for those looking for hazardous material storage solutions.

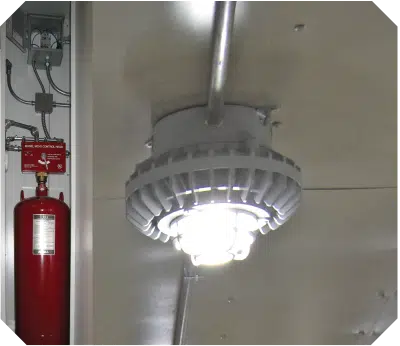

Fire-Suppression System & Explosion-Proof Lighting

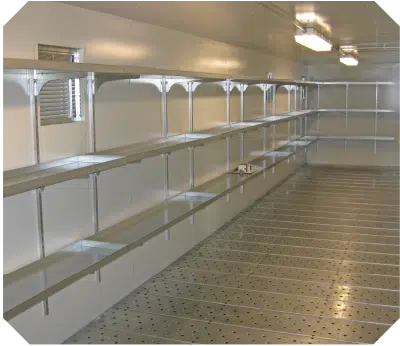

Interior Shelving

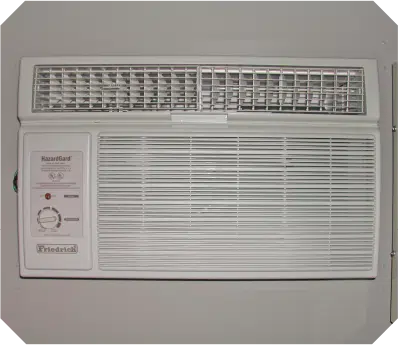

Explosion-Proof Air Conditionar

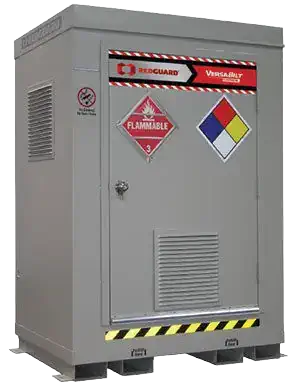

FM Approved, Fire Rated Wall And Roof; Intertek Tested
Fire rated storage buildings carry the Factory Mutual Approval label and have an FM approved fire rated wall and roof design. Wall and roof were tested at Intertek Testing Laboratories. Standard models are available with a 2-hour and 4-hour fire rating upgrade. Roof ratings may be upgraded to either 1.5 or 3 hours. Check with your local authority having jurisdiction for the correct wall/roof rating needed.
Industry’s first and only FM-approved fire-rated wall and roof design tested at Intertek Testing Laboratories
| MODEL | SIZE(s) |
|---|---|
| OXRP-200 | 1-48" x 60" |
| OXRP-400 | 1-48" x 60" |
| OXRP-600 | 1-24" x 60" & 1-48" x 60" |
| OXRP-900 | 1-24" x 60" & 1-48" x 60" |
| OXRP-1200 | 2-48" x 60" |
| OXRP-1600 | 2-48" x 60" |
| OXRP-2400 | 1-24" x 60" & 2-48" x 60" |
| OXRP-3200 | 3-48" x 60" |
| OXRP-4800 | 4-48" x 60" |
| OXRP-6400 | 5-48" x 60" |
| OXRP-8000 | 6-48" x 60" |

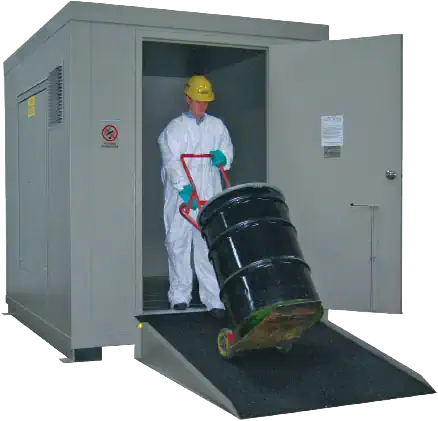

HazMat Chemical Storage
These buildings are specifically designed for outdoor storage and dispensing of flammable or combustible liquids. The outer wall is constructed of welded 16- or 12-gauge steel. The inner wall is constructed of 20-gauge steel. Outdoor storage buildings are engineered with 3” airspace throughout and come standard with a commercial-grade lockset.
Compliance Standard
All models are designed in accordance with NFPA Code 30 standards and comply with OSHA and EPA regulations. All models are FM-approved for storing and dispensing flammable and combustible liquids.
- Natural Convection Air Vents – OSHA, FM 6049, IBC
- Explosion Relief Panel(s) – IBC, FM, NFPA
- Forklift Channels with Anchoring Brackets – EPA, IBC, to lift off ground & allow for visual inspection of sump area
- Heavy Gauge Aluminum Threshold
- Chemical/Corrosive/Ultraviolet-Resistant Paint
- NFPA 704 Warning Label for Hazard Rating System with Placard Holder & Protective Shield – FM, OSHA, NFPA
- Removable Galvanized Steel Safety Floor Planking – 250lb FM Requirement OSHA 1910, IBC
- Leak-tight, Continuously Welded Sump Meets EPA & OSHA Requirements for Secondary Containment – EPA, NFPA, OSHA, FM, IBC
- Reflective Warning Tape Marking Entry – OSHA, IBC
Lockers/Buildings For Storing 55-Gallon Drums- Outdoor & Indoor Applications
| MODEL | TEST LAB APPROV. | SUMP CAPACITY to HOLD | SUMP CAPACITY | Exterior HxWxD | WEIGHT |
|---|---|---|---|---|---|
| B200 | FM*~ | 2 55-Gal. Drums | 55 gal. | 7' x 5' x 3'6" | 1281 lbs. |
| B400 | FM*~ | 4 55-Gal. Drums | 68 gal. | 7' x 5' x 5' | 1748 lbs. |
| B600 | FM*~ | 6 55-Gal. Drums | 102 gal. | 8'4" x 7' x 5' | 2061 lbs. |
| B900 | FM*~ | 9 55-Gal. Drums | 154 gal. | 8'4" x 7' x 7' | 2567 lbs. |
| B1200 | FM*~ | 12 55-Gal. Drums | 206 gal. | 8'4" x 7' x 9' | 3200 lbs. |
| B1600 | FM*~ | 16 55-Gal. Drums | 272 gal. | 8'4" x 10' x 8' | 5515 lbs. |
| B2400 | FM*~ | 24 55-Gal. Drums | 393 gal. | 8'4" x 14' x 8' | 6994 lbs. |
| B3200 | FM*~ | 32 55-Gal. Drums | 514 gal. | 8'4" x 18' x 8' | 8652 lbs. |
| B4800 | FM*~ | 48 55-Gal. Drums | 757 gal. | 8'4" x 26' x 8' | 9963 lbs. |
| B6400 | FM*~ | 64 55-Gal. Drums | 1000 gal. | 8'4" x 34' x 8' | 12851 lbs. |
| B8000 | FM*~ | 80 55-Gal. Drums | 1243 gal. | 8'4" x 42' x 8' | 15369 lbs. |
*Sizes 1600 and larger are constructed of 12-gauge galvanized steel
Agricultural Chemical Storage
RedGuard offers VersaBilt Chemical Storage buildings specifically designed for the proper storage of agricultural chemicals and equipment. These specialty resilient structures are designed for the compliant mixing and handling of pesticides, herbicides, and other turf chemicals. That makes them ideal for golf courses, nurseries, universities, or other commercial operations that use large quantities of agricultural chemicals.
Other Industrial Uses
Because these buildings are designed to secure environmental hazards like pesticides, they can also safely contain paints, oils, fuels, lubricants, or other industrial chemicals. Storing these hazards safely reduces the risk of poisoning and injury among handlers, employees, or others in the area. It also protects against chemical spills, animal poisoning, or product loss from theft, fire, or unauthorized access.
- Natural Convection Air Vents – OSHA, FM 6049, IBC
- Explosion Relief Panel(s) – IBC, FM, NFPA
- R11 Fiberglass Insulation in Ceiling and Walls – IBC
- Vapor-resistant Exterior Light with Photocell – UL, OSHA, IBC
- Forklift Channels with Anchoring Brackets – EPA, to lift off ground & allow for visual inspection of sump area, IBC
- Chemical/Corrosive/Ultraviolet-Resistant Paint
- Dust-proof, Fluorescent Interior Light with Weatherproof Switch – UL, OSHA, IBC
- Removable Galvanized Steel Safety Floor Planking – 250lb FM Requirement OSHA 1910, IBC
- Leak-tight, Continuously Welded Sump Meets EPA & OSHA Requirements for Secondary Containment – EPA, NFPA, OSHA, FM, IBC
- Reflective Warning Tape Marking Entry – OSHA, 1910, IBC
- Heavy Gauge Aluminum Threshold – IBC
Lockers/Buildings For Storing 55-Gallon Drums- Outdoor & Indoor Applications
| MODEL | TEST LAB APPROV. | CAPACITY | SUMP CAPACITY | Exterior HxWxD | WEIGHT |
|---|---|---|---|---|---|
| AG200 | FM*~ | 68.4 cu ft | 55 gal. | 7' x 5' x 3'6" | 1499 lbs. |
| AG400 | FM*~ | 145.1 cu ft | 68 gal. | 7' x 5' x 5' | 1891 lbs. |
| AG600 | FM*~ | 211.4 cu ft | 102 gal. | 8'4" x 7' x 5' | 2331 lbs. |
| AG900 | FM*~ | 308.1 cu ft | 154 gal. | 8'4" x 7' x 7' | 2937 lbs. |
| AG1200 | FM*~ | 404.7 cu ft | 206 gal. | 8'4" x 7' x 9' | 3638 lbs. |
| AG1600 | FM*~ | 524.1 cu ft | 272 gal. | 8'4" x 10' x 8' | 5226 lbs. |
| AG2400 | FM*~ | 747.7 cu ft | 393 gal. | 8'4" x 14' x 8' | 6443 lbs. |
| AG3200 | FM*~ | 971.3 cu ft | 514 gal. | 8'4" x 18' x 8' | 8030 lbs. |
| AG4800 | FM*~ | 1418.5 cu ft | 757 gal. | 8'4" x 26' x 8' | 10566 lbs. |
| AG6400 | FM*~ | 1865.7 cu ft | 1000 gal. | 8'4" x 34' x 8' | 13584 lbs. |
| AG8000 | FM*~ | 2313 cu ft | 1243 gal. | 8'4" x 42' x 8' | 15301 lbs. |
*Sizes 1600 and larger are constructed of 12-gauge galvanized steel
